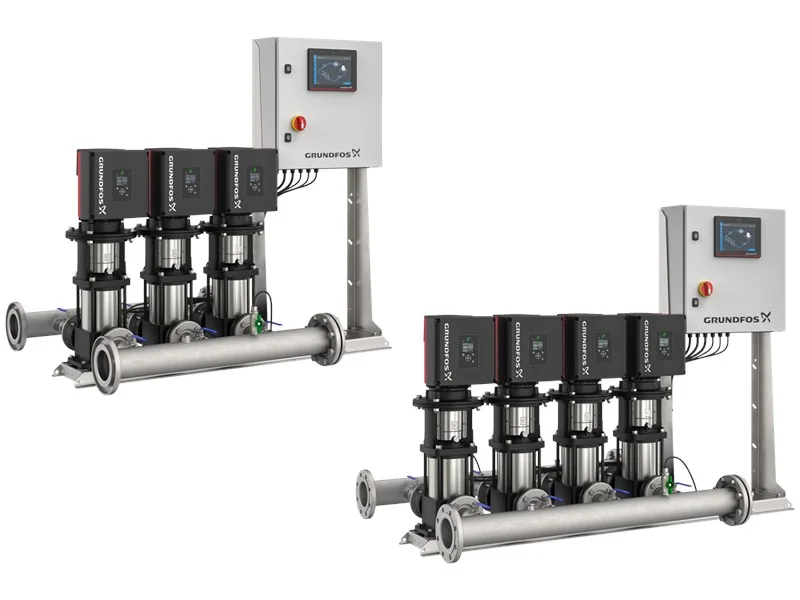

The Grundfos Hydro MPC is a factory-assembled pressure boosting system with two to six parallel CR/CRE vertical multistage pumps mounted on a common base frame with stainless steel manifolds and the intelligent CU 352 multi-pump controller. Cascade and variable-speed control deliver constant pressure at flows up to 1080 m3/h and heads up to 155 m, with motor sizes from 0.37 to 55 kW on 3x380-415 V, 50 Hz supply. Available in E, F, and S control variants to match fluctuating demand profiles. Applications include municipal waterworks, high-rise apartment buildings, hotels, hospitals, schools, and industrial water distribution.

Flow Rate :

0 - 1080 m³/h

Head :

Up to 155 m

Motor Power :

0.37 - 55 kW (2 to 6 pumps)

Power Supply :

3 x 380-415 V, 50 Hz

Max Fluid Temperature :

+70 °C (liquid range 0 to +70 °C)

Max Operating Pressure :

16 bar (higher on request)

Material :

Stainless steel EN 1.4301/AISI 304 pump hydraulics; stainless steel EN 1.4571 manifolds

Pipework Connection :

R 2 to R 2½ union; DN 80 to DN 350 DIN flanges
