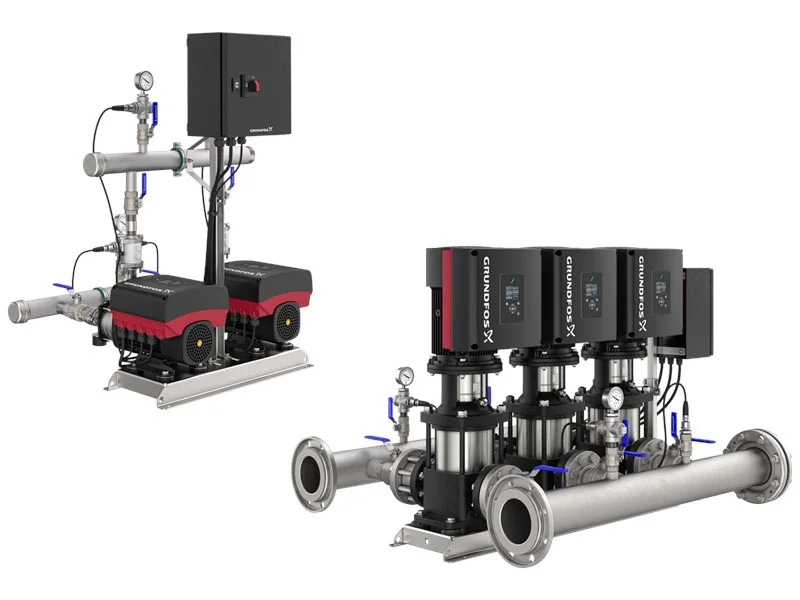

Grundfos Hydro Multi-E is a factory-assembled, variable-speed packaged booster system with two to four CRE/CRIE pumps (or two to three CME pumps) connected in parallel on a common base frame with stainless steel AISI 316 Ti manifolds. IE5 super-premium-efficiency MGE permanent-magnet motors with integrated frequency converters and cascade PI control hold constant pressure at varying demand, delivering flows up to approximately 120 m3/h and heads up to 110 m at 50 Hz. Dry-running protection, redundant pressure sensors, and a diaphragm tank are fitted as standard. Application areas include apartment buildings, hotels, hospitals, schools, office buildings, industrial process water, and irrigation.

Flow Rate :

Up to approx. 120 m³/h (50 Hz, 4-pump CRE systems)

Head :

Up to 110 m (50 Hz)

Motor Power :

0.37 – 11 kW per pump

Supply Voltage :

1 x 200-240 V / 3 x 380-415 V, 50/60 Hz

Max Operating Pressure :

10 bar (16 bar on selected models)

Max Fluid Temperature :

+60 °C (liquid range 5-60 °C)

Material :

Stainless steel EN 1.4571 / AISI 316 Ti manifolds and base frame

Warranty :

2 years
