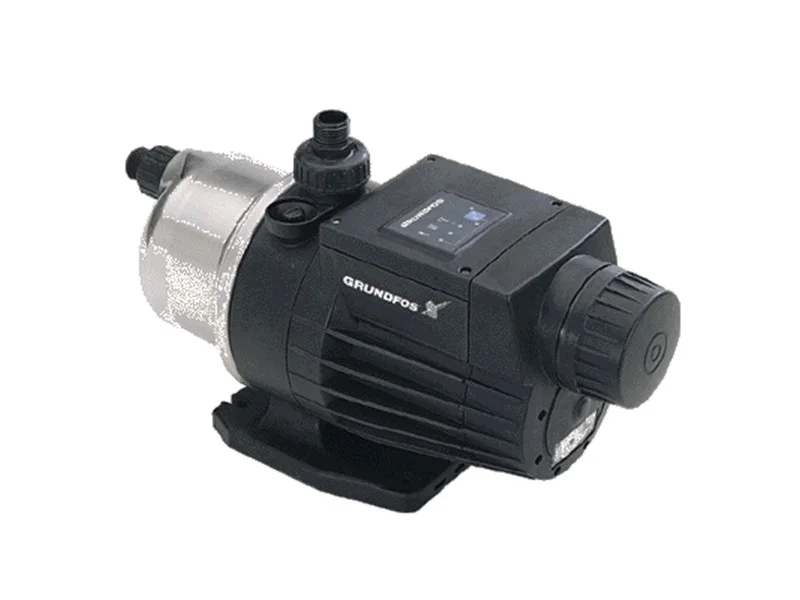

The Grundfos MQ is a compact all-in-one pressure boosting unit that integrates pump, motor, diaphragm pressure tank, pressure and flow sensor, controller and non-return valve in a single self-priming package. Delivering flows up to 5 m3/h and heads up to 45 m, it starts and stops automatically on demand, with built-in dry-run protection, automatic reset and anti-cycling for quiet, low-maintenance operation. Self-priming from depths up to 8 m, the MQ installs on a small footprint with simple G1 pipe connections. Ideal for domestic water supply, pressure boosting from overhead and underground tanks, shallow wells, gardens, and light irrigation.

Flow Rate :

Rated 3 m3/h; maximum up to 5 m3/h

Head :

Up to 35 m (MQ 3-35) / up to 45 m (MQ 3-45)

Power Supply :

0.85 kW (MQ 3-35) / 1.0 kW (MQ 3-45), 1x220-240 V, 50 Hz single-phase

Suction Lift :

Self-priming up to 8 m (within 5 minutes)

Max Fluid Temperature :

35 C (ambient up to 45 C)

Max Operating Pressure :

7.5 bar

Connection Size :

G1 (1 inch) inlet and outlet

Material :

Corrosion-resistant glass-fibre reinforced composite hydraulics (POM pump housing, PPO impellers)
