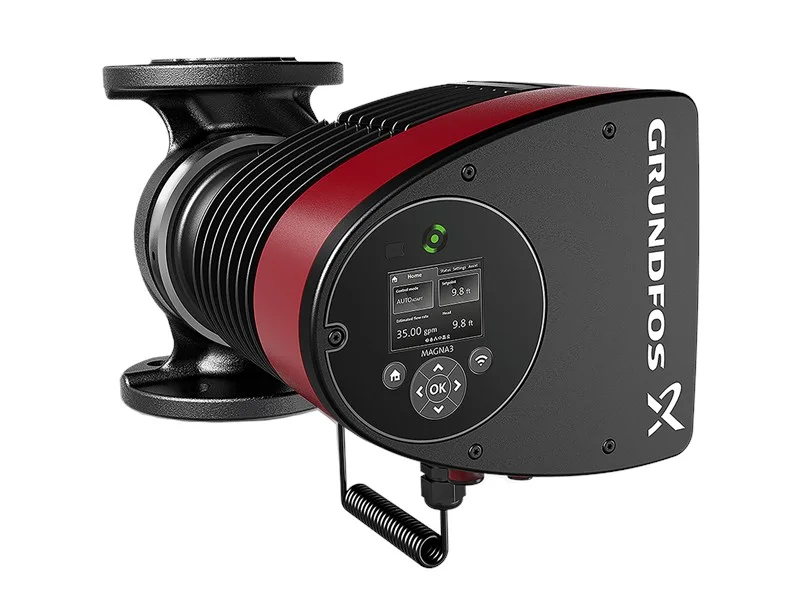

The Grundfos MAGNA1 and MAGNA3 are seal-less, wet-rotor variable-speed circulators built on permanent-magnet motor technology, covering flows up to 70 m³/h and heads up to 18 m with a best-in-class Energy Efficiency Index of 0.20 or lower. MAGNA3 adds AUTOADAPT and FLOWADAPT self-optimising control, a built-in heat energy meter, TFT display and BMS integration via optional CIM fieldbus modules, while MAGNA1 offers nine simple field-selectable control settings. Applications include commercial HVAC heating circuits, chilled-water and air-conditioning systems, district energy, ground-source heat pump systems and domestic hot-water recirculation.

Flow Rate :

Up to 70 m³/h (family maximum, MAGNA3)

Head :

Up to 18 m (MAGNA3); up to 12 m (MAGNA1)

Power Input (P1) :

9 W to 1,564 W depending on model

Power Supply :

1 x 230 V ±10%, 50/60 Hz, single-phase

Max Fluid Temperature :

+110 °C (liquid range -10 °C to +110 °C)

Material :

Cast iron (EN-GJL-250) or stainless steel (N versions) housing; PES 30% glass-fibre composite impeller

Connection Sizes :

Threaded G 1½ / G 2; flanged DN 32 to DN 100

Max Working Pressure :

PN 6/10 or PN 16 (model dependent)
