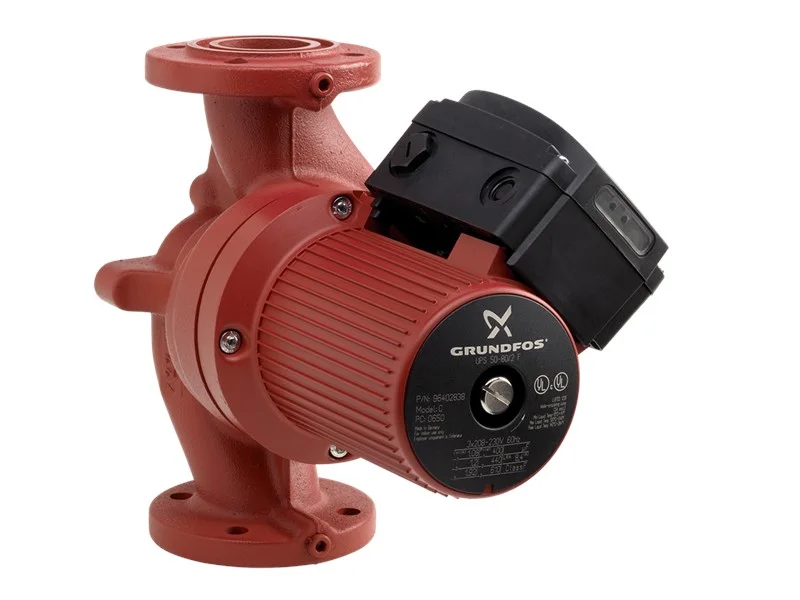

The Grundfos UP / UPS Series 200 is a range of larger three-speed circulator pumps engineered for commercial heating and cooling duty. The maintenance-free canned-rotor design eliminates the shaft seal, while the three-speed motor lets installers match pump performance to system demand. Flanged models from DN 32 to DN 100 deliver flows up to 70 m³/h at heads up to 18 m, handling liquids from -10 °C to +120 °C, with cast iron or bronze housings and UPSD twin-head versions for duty/standby operation. Applications include commercial heating systems, cooling and air-conditioning circuits, district heating, and domestic hot water recirculation.

Flow Rate :

Up to 70 m³/h

Head :

Up to 18 m

Power Input (P1) :

185 W – 1,710 W (model and speed dependent)

Power Supply :

1 x 230-240 V or 3 x 400-415 V, 50 Hz

Max Fluid Temperature :

+120 °C continuous (-10 °C min; +140 °C for short periods)

Material :

Cast iron or bronze pump housing; stainless steel impeller and rotor can

Connections :

Flanged, DN 32 – DN 100 (PN 6 / PN 10, max 10 bar)

Warranty :

2 years
